POF-IAD100-01
POF Home Gateway
Revolutionary POF home network solution can promote FTTH being common, which will push IPTV and HDTV service. POF Home Gateway can provide POF interface and use POF as the media,apply to home POF cabling.
革命性的塑料光纤（POF）家庭网络解决方案将促进“光纤到户”的普及，同时推动VOIP与IPTV服务的发展。塑料光纤家庭语音网关（POF-IAD100-01）是一款提供塑料光纤接口的新型语音网关设备，其最大的区别就是用塑料光纤接口取代传统的RJ-45网络接口，适用于塑料光纤布线的应用环境。
POF-IAD100-01 是以个人和家庭用户为目标群体开发的。提供丰富的端口选择，具有高度灵活性、安全性和稳定性，为每次连接提供专属的超高频宽，而且不需要特别工具便可轻松实现安装、使用。
| Product Name | POF Home Gateway |
| Product Number | POF-IAD100-01 |

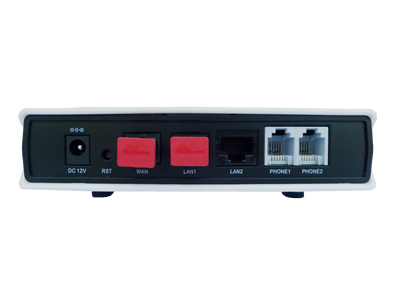

Equipment Port | 1 OptoLock（WAN）POF interface |
| 1 OptoLock（LAN1）POF interface | |
| 1 10/100Mbps Ethernet RJ-45（LAN2）interface | |
| 2 POTS interface | |
| 1 12V DC power interface | |
| Transmission Medium | Φ2.2mm Duplex Plastic Optical Fiber Cable, core material PMMA ,Wavelengh 650nm |
| Dimensions (Lx W x H) | 135mm ×115mm ×35 mm |
| Weight | 205kg |
| Power Supply | 12V DC |
| Power Consumption | 10W |
| Work Environment | Temperature: 0ºC to 40ºC |
| Humidity: 5% to 95% (Non-condensing) | |
| Storage Environment | Temperature: -10ºC to 50ºC |
| Humidity: 5% to 95% (Non-condensing) | |
Reliability | System Reliability > 99.999%； |
| Trouble-free continuous working time > 100 thousand hours； | |
| Recovery time< 5min； | |
Network Features | |
Protocol and Standards | IEEE802.3 10Base Ethernet |
| IEEE802.3u 100Base Ethernet | |
| IEEE802.3x Full-duplex Flow Control and Back PressureHalf-duplex Flow Control | |
| QoS | Based on 802.1P Priority Queue control. |
| Support different service flow 802.1P andIP TOS Mark. | |
| VLAN/Tagging | Based on 802.1Q VLAN, identify RTP/RTCP service diffrently. |
| IP Address | Occupation 1 IP, Static allocation or DHCP mode,or PPPoE mode |
| MAC Address | Occupation 1 MAC address |
| Network switching mode | store-and-forward |
| Full/half duplex | Adaptive |
| Throughput | 148810pps |
| Routing Protocol | Static Routing |
Voice Features | |
| Protocol and Standards | MGCP/ SIP /H.323 /RTP /RTCP |
| Voice coding/ Compression | G.711，G.723，G.726，G.729 |
| noise control | Comfort Noise Generation & level control |
| Echo Process | G.165/G.168-2000 Echo Inhibition |
| Mute Process | Mute Detect and Compression |
| FAX | T.30/T.38 |
| Delay/Packet loss Process | delay Shake control/ Packet loss Compensate |
| POTS interface | > 5km |
| Convergence ratio | 1:1 |
| support service | PSTN basic service、PSTN Additional service、Voice console etc.Value-added features |
Management Features | Remote Telnet Management、Remote Web Management、Remote SNMP Network Management、iManager 2000 Concentrated Management |
革命性的塑料光纤（POF）支持1个上行POF接口、1个下行的POF接口和一个下行的10/100Mbps以太端接口，同时提供2个模拟电话端口（FXS）。
现代家庭网络就是由一台或者多台计算机、IP电话、IPTV、打印机、网络机顶盒、数字家电等设备连接在一起，来实现上网、通信、电视、电话、监控、打印等目的，实现家庭网络共享资源，Internet 互联网访问、高清电视以及其他需求的。POF-IAD100-01丰富的接口满足了家庭塑料光纤网络的各种需求。点击放大图片
